Lesson 8: SLR: Model Diagnostics

Nicky Wakim

2026-02-04

Learning Objectives

1. Implement a model with data transformations to meet LINE assumptions.

2. Use visualizations and cut off points to flag potentially influential points using residuals, leverage, and Cook’s distance

3. Handle influential points and assumption violations by checking data errors, reassessing the model, and making data transformations.

Process of regression data analysis

Model Selection

• Building a model

• Selecting variables

• Prediction vs interpretation

• Comparing potential models

Model Fitting

• Find best fit line

• Using OLS in this class

• Parameter estimation

• Categorical covariates

• Interactions

Model Evaluation

• Evaluation of model fit
• Testing model assumptions
• Residuals
• Transformations
• Influential points
• Multicollinearity

Model Use (Inference)

• Inference for coefficients
• Hypothesis testing for coefficients

• Inference for expected \(Y\) given \(X\)
• Prediction of new \(Y\) given \(X\)

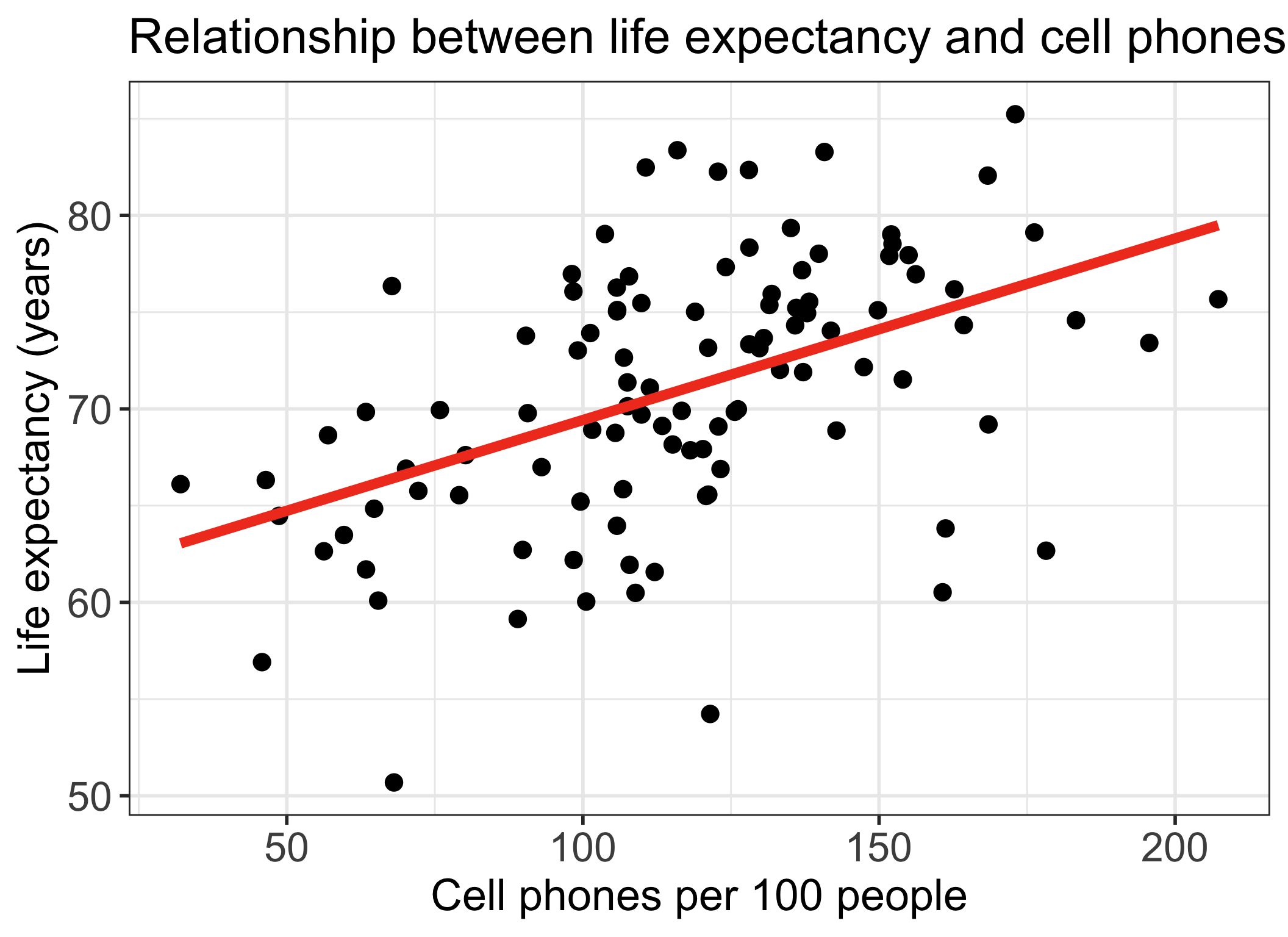

Let’s remind ourselves of one model we have been working with

• We have been looking at the association between life expectancy and cell phones

• We used OLS to find the coefficient estimates of our best-fit line

Population model:

\[\begin{aligned} Y &= \beta_0 + \beta_1 \cdot X + \epsilon \\ \text{LE} &= \beta_0 + \beta_1 \text{CP} + \epsilon \end{aligned}\]

Estimated model:

term	estimate	std.error	statistic	p.value
(Intercept)	60.041	2.056	29.207	0.000
cell_phones_100	0.094	0.017	5.546	0.000

\[\begin{aligned} \widehat{Y} &= \widehat\beta_0 + \widehat\beta_1 \cdot X\\ \widehat{\text{LE}} &= 60.04 + 0.094\cdot\text{CP} \end{aligned}\]

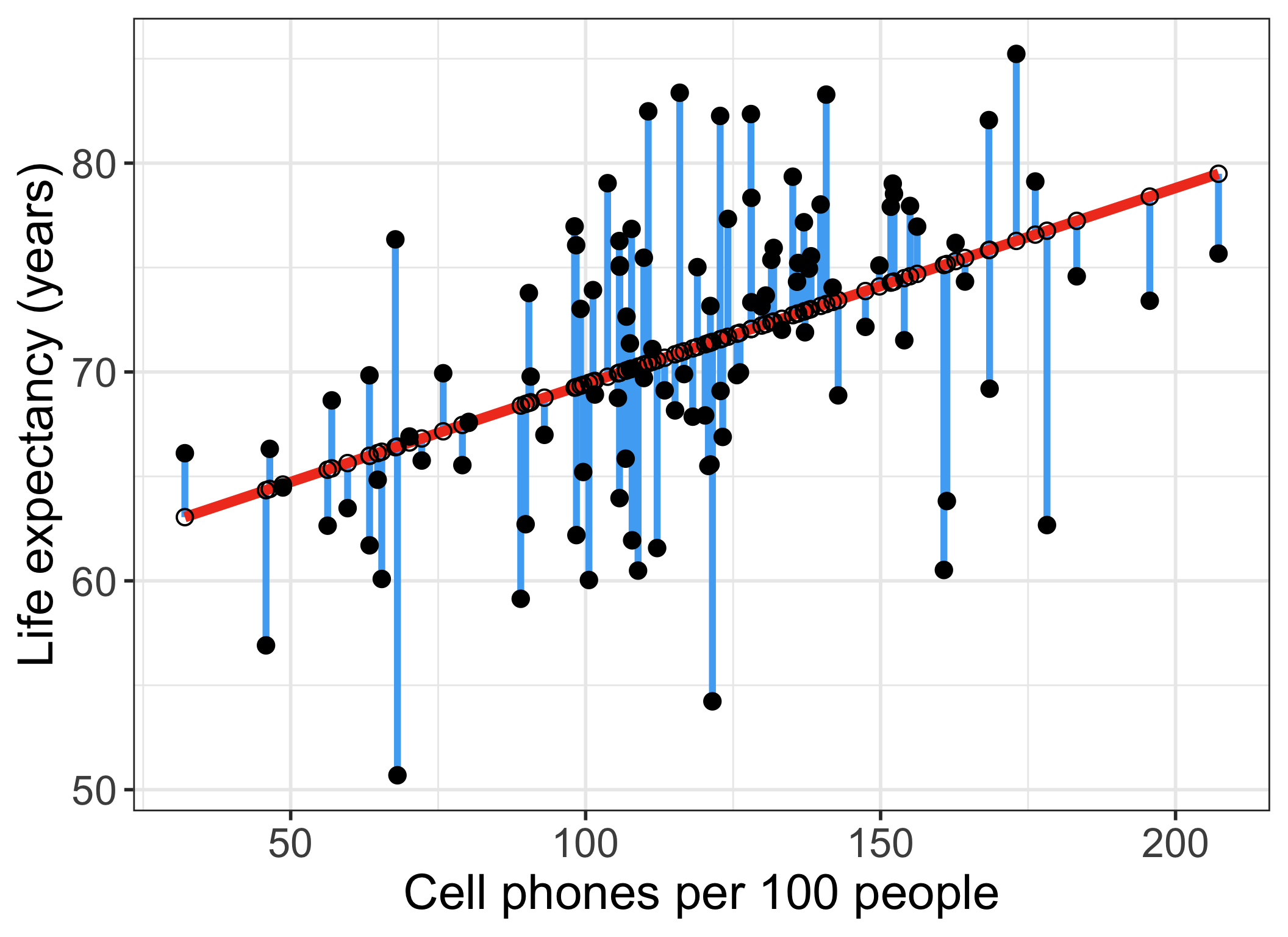

Our residuals will help us a lot in our diagnostics!



• The residuals \(\widehat\epsilon_i\) are the vertical distances between

  • the observed data \((X_i, Y_i)\)
  • the fitted values (regression line) \(\widehat{Y}_i = \widehat\beta_0 + \widehat\beta_1 X_i\)

\[ \widehat\epsilon_i =Y_i - \widehat{Y}_i \text{,   for } i=1, 2, ..., n \]

augment(): getting extra information on the fitted model

• Run model1 through augment() (model1 is input)

  • So we assigned model1 as the output of the lm() function (model1 is output)

• Will give us values about each observation in the context of the fitted regression model

  • cook’s distance (.cooksd), fitted value (.fitted, \(\widehat{Y}_i\)), leverage (.hat), residual (.resid), standardized residuals (.std.resid)

aug1 <- augment(model1)
glimpse(aug1)

Rows: 105
Columns: 8
$ life_exp        <dbl> 62.64, 76.07, 73.41, 75.37, 73.66, 71.37, 63.96, 75.47…
$ cell_phones_100 <dbl> 56.2655, 98.3950, 195.6250, 131.4840, 130.5400, 107.50…
$ .fitted         <dbl> 65.32037, 69.27372, 78.39761, 72.37873, 72.29015, 70.1…
$ .resid          <dbl> -2.6803652, 6.7962791, -4.9876074, 2.9912674, 1.369850…
$ .hat            <dbl> 0.038747119, 0.012168777, 0.059882210, 0.011325165, 0.…
$ .sigma          <dbl> 5.987137, 5.954886, 5.971571, 5.985846, 5.991701, 5.99…
$ .cooksd         <dbl> 4.234809e-03, 8.096656e-03, 2.369189e-02, 1.457236e-03…
$ .std.resid      <dbl> -0.45838569, 1.14653081, -0.86249588, 0.50441083, 0.23…

RDocumentation on the augment() function.

Revisiting our LINE assumptions

[L] Linearity of relationship between variables

Check if there is a linear relationship between the mean response (Y) and the explanatory variable (X)

[I] Independence of the \(Y\) values

Check that the observations are independent

[N] Normality of the \(Y\)’s given \(X\) (residuals)

Check that the responses (at each level X) are normally distributed

• Usually measured through the residuals

[E] Equality of variance of the residuals (homoscedasticity)

Check that the variance (or standard deviation) of the responses is equal for all levels of X

• Usually measured through the residuals

Learning Objectives

1. Implement a model with data transformations to meet LINE assumptions.

2. Use visualizations and cut off points to flag potentially influential points using residuals, leverage, and Cook’s distance

3. Handle influential points and assumption violations by checking data errors, reassessing the model, and making data transformations.

Transformations

• When we have issues with our LINE (mostly linearity, normality, or equality of variance) assumptions

  • We can use transformations to improve the fit of the model

• We can transform the dependent (\(Y\)) variable and/or the independent (\(X\)) variable

  • Usually we want to try transforming the \(X\) first



• Requires trial and error!!

• Major drawback: interpreting the model becomes harder!

• Tukey’s transformation (power) ladder

  • Use R’s gladder() command from the describedata package

Power p	-3	-2	-1	-1/2	0	1/2	1	2	3
	\(\frac{1}{x^3}\)	\(\frac{1}{x^2}\)	\(\frac{1}{x}\)	\(\frac{1}{\sqrt{x}}\)	\(\log(x)\)	\(\sqrt{x}\)	\(x\)	\(x^2\)	\(x^3\)

Common transformations

If relationship does not look linear

• Transform X or Y
• We will need to investigate the scatterplot to see if it worked

If residuals are not normal

• Transform Y

• If \(Y\) skewed left, we need to compress smaller values towards the rest of the data

  • We use transformations of \(Y\) with power > 1

• If \(Y\) skewed right, we need to compress larger values towards the rest of the data

  • We use transformations of \(Y\) with power < 1

If residuals have non-constant variance

• Transform Y

• If higher \(X\) values have more spread in \(Y\)

  • We use transformations of \(Y\) with power < 1

• If lower \(X\) values have more spread in \(Y\)

  • We are transformations of \(Y\) with power > 1

Three cases to explore different transformations

If relationship does not look linear

If residuals are not normal

If residuals have non-constant variance

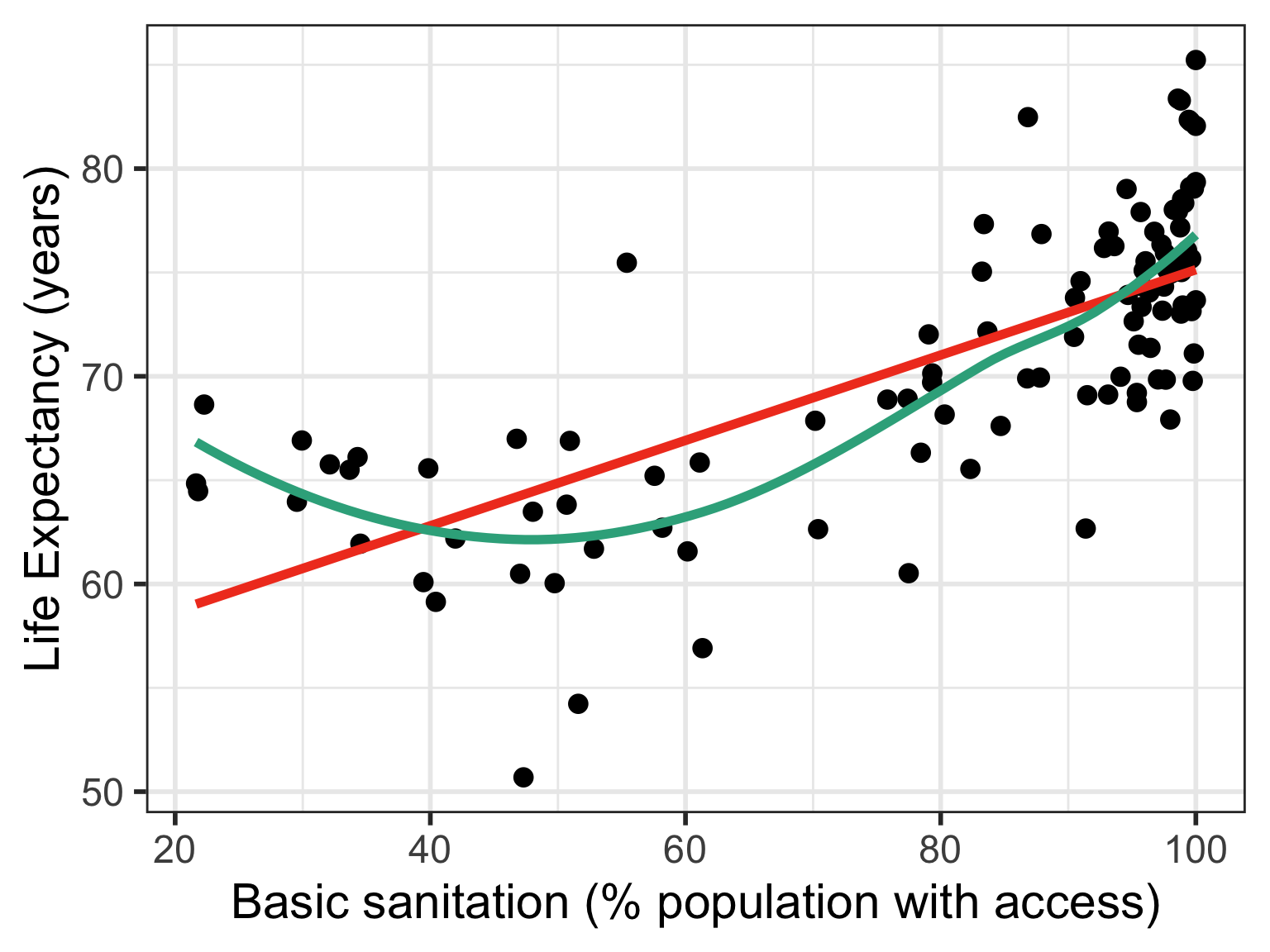

Case 1: Relationship does not look linear

• Transform independent variable (X)

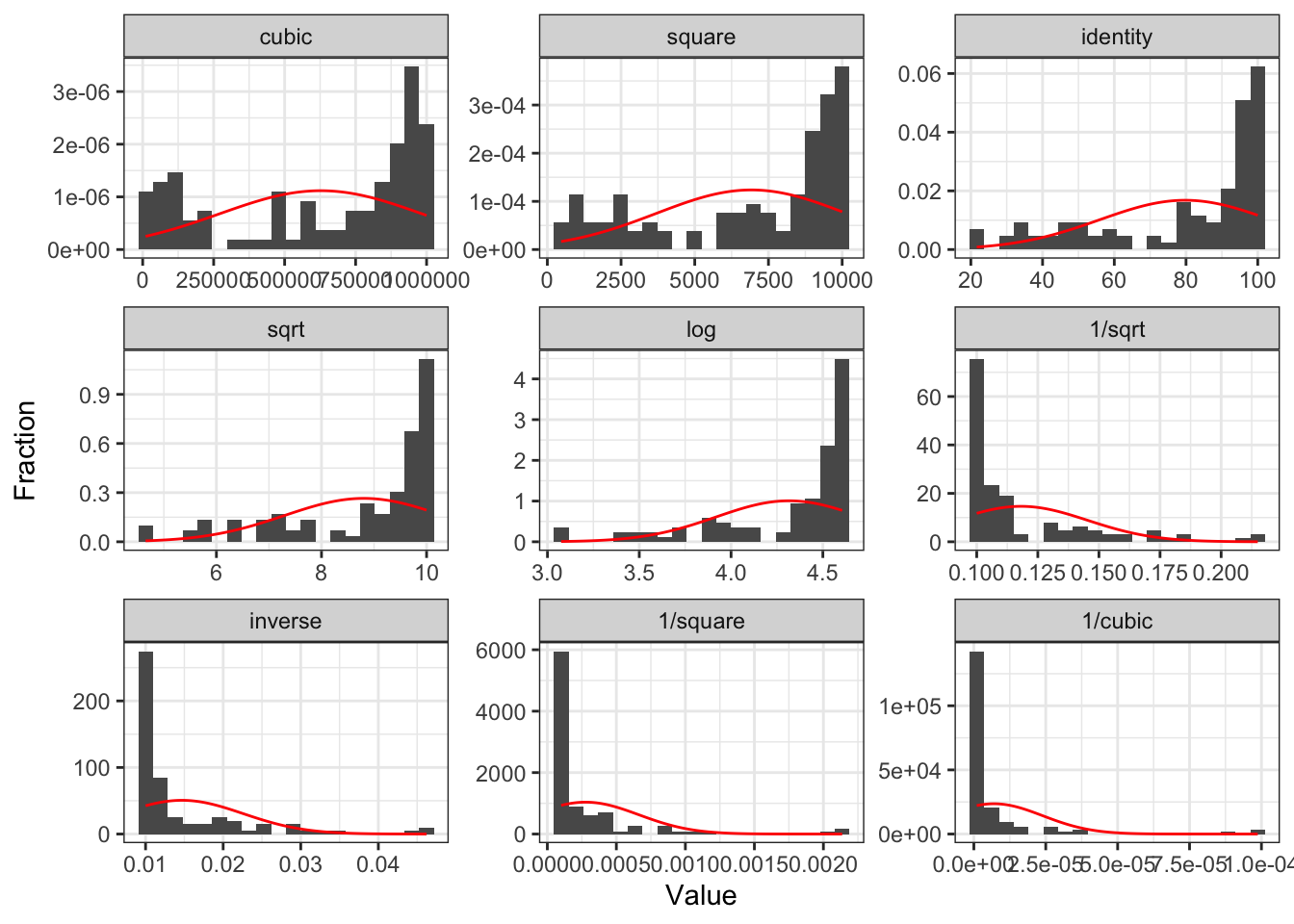

gladder(gapm$basic_sani)

Poll Everywhere Question 1

Case 1: Relationship does not look linear

• Transform dependent/response variable (Y)

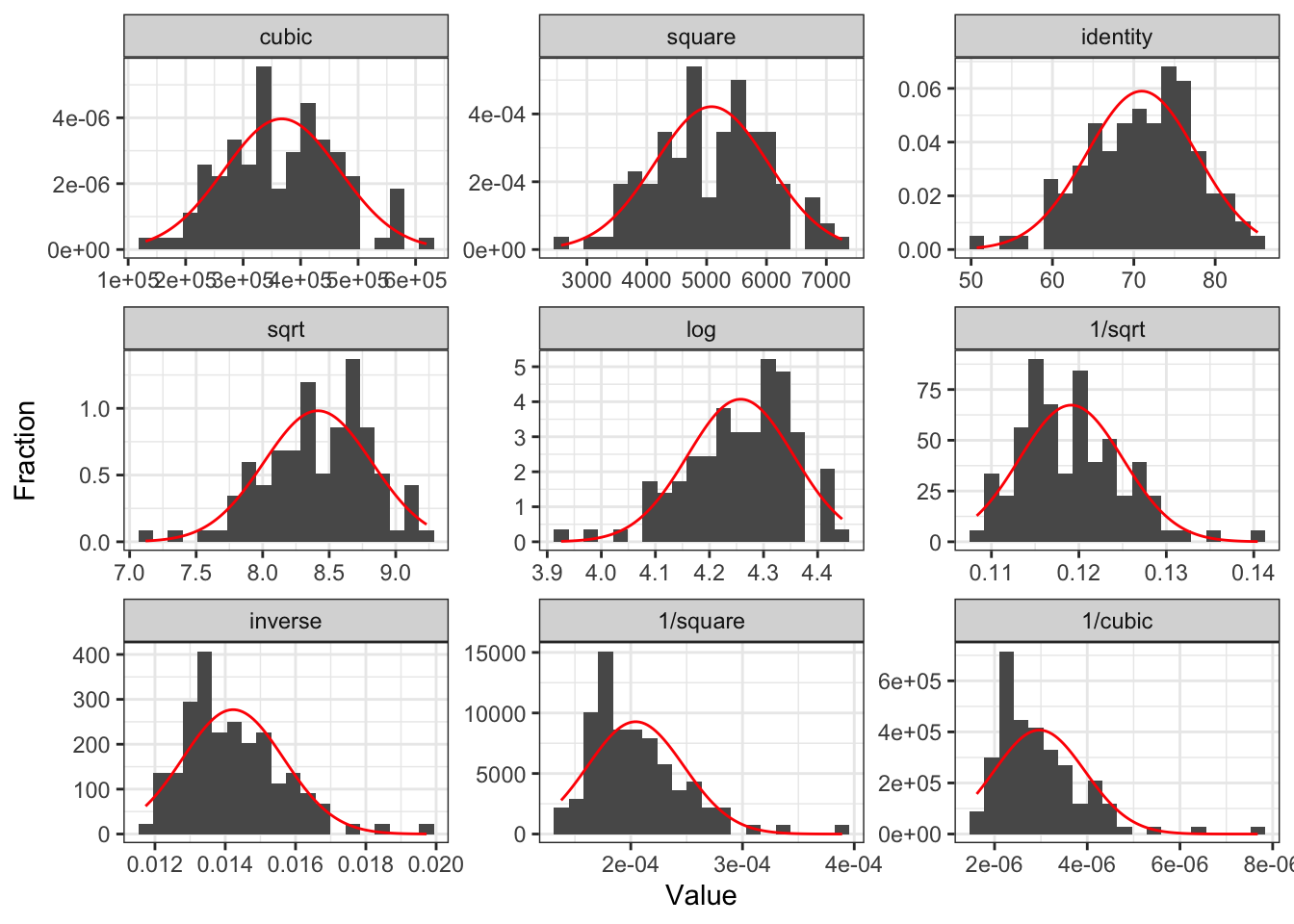

gladder(gapm$life_exp)

Case 1: Add quadratic and cubic transformations to dataset

• Helpful to make a new variable with the transformation in your dataset

gapm <- gapm %>%
  mutate(LE_2 = life_exp^2,
         LE_3 = life_exp^3,
         BS_2 = basic_sani^2,
         BS_3 = basic_sani^3)

colnames(gapm)

 [1] "geo"                 "territory"           "life_exp"
 [4] "freedom_status"      "vax_rate"            "co2_emissions"
 [7] "basic_sani"          "happiness_score"     "income_level_4"
[10] "cell_phones_100"     "basic_sani_80_above" "fs_order"
[13] "LE_2"                "LE_3"                "BS_2"
[16] "BS_3"

Case 1: We are going to compare a few different models with transformations

We are going to call life expectancy \(LE\) and cell phones per 100 people \(CP\)

• Model 1: \(LE = \beta_0 + \beta_1 BS + \epsilon\)
• Model 2: \(LE^2 = \beta_0 + \beta_1 BS + \epsilon\)
• Model 3: \(LE^3 = \beta_0 + \beta_1 BS + \epsilon\)
• Model 4: \(LE = \beta_0 + \beta_1 BS + \beta_2 BS^2 +\epsilon\)
• Model 5: \(LE = \beta_0 + \beta_1 BS + \beta_2 BS^2 +\beta_3 BS^3 +\epsilon\)
• Model 6: \(LE^3 = \beta_0 + \beta_1 BS + \beta_2 BS^2 +\beta_3 BS^3 +\epsilon\)

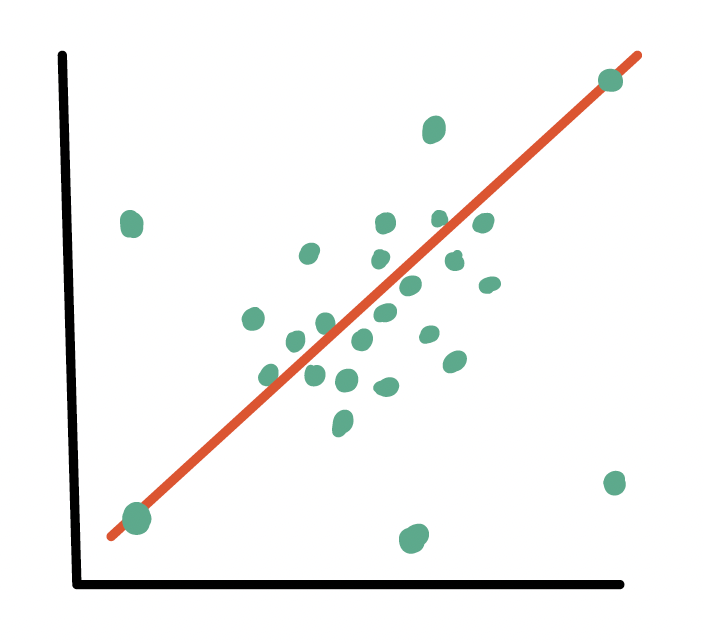

Poll Everywhere Question 2

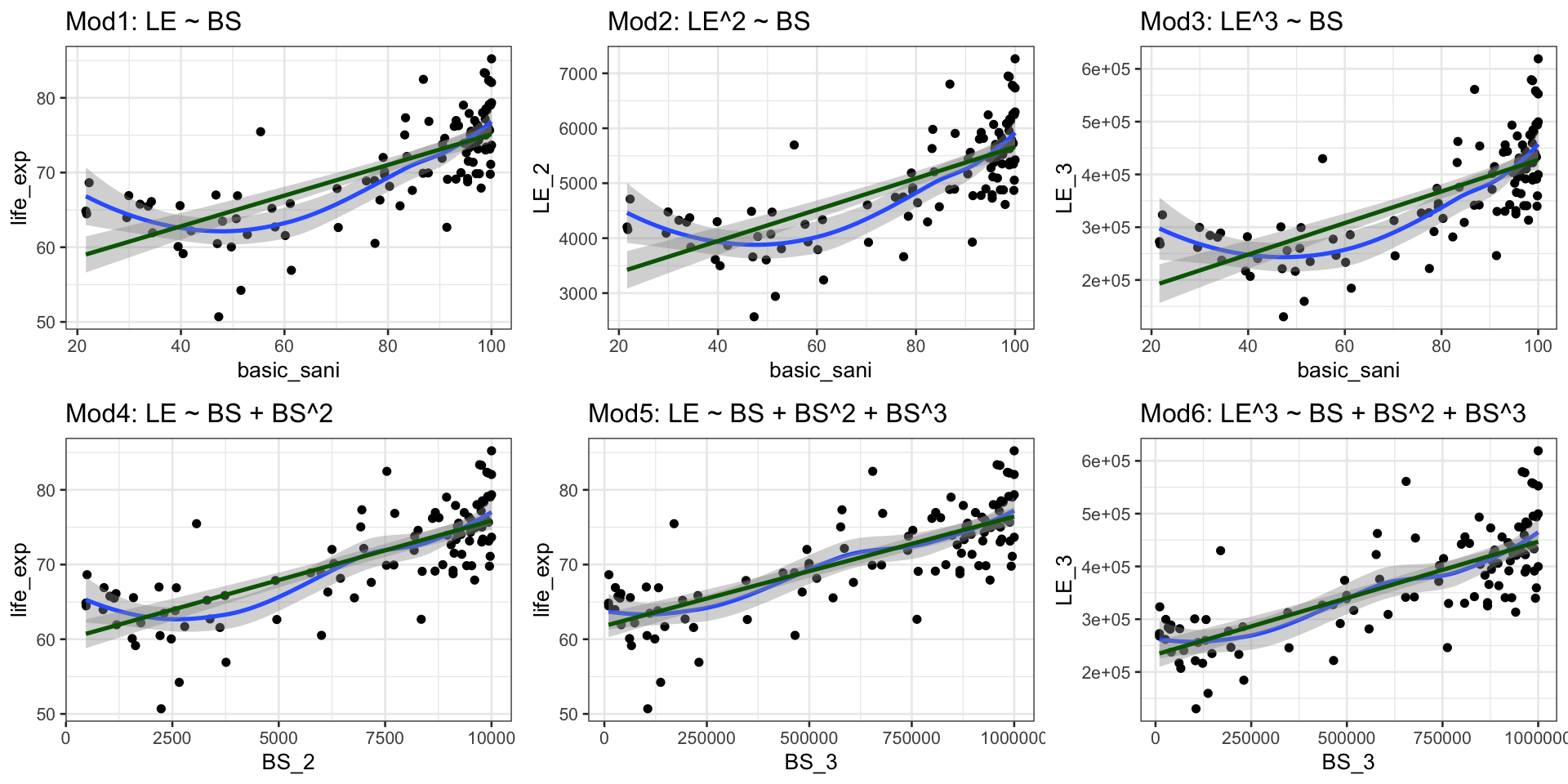

Case 1: Compare Scatterplots: does linearity improve?

Case 1: Run models with transformations: examples

Model 1: \(LE = \beta_0 + \beta_1 BS + \epsilon\)

model1 <- lm(life_exp ~ basic_sani,
             data = gapm)

term	estimate	std.error	statistic	p.value
(Intercept)	54.583	1.616	33.781	0.000
basic_sani	0.206	0.019	10.581	0.000

Model 5: \(LE = \beta_0 + \beta_1 BS + \beta_2 BS^2 +\beta_3 BS^3 +\epsilon\)

model5 <- lm(life_exp ~ basic_sani + BS_2 + BS_3,
             data = gapm)

term	estimate	std.error	statistic	p.value
(Intercept)	80.275	9.192	8.733	0.000
basic_sani	−0.857	0.502	−1.707	0.091
BS_2	0.012	0.008	1.400	0.165
BS_3	0.000	0.000	−0.812	0.419

Case 1: Issues with interpretability

• When we transform variables, interpreting the coefficients becomes more difficult

• For example, in Model 5: \[LE = \beta_0 + \beta_1 BS + \beta_2 BS^2 +\beta_3 BS^3 +\epsilon\]

  • The effect of basic sanitation on life expectancy is not constant anymore
  • The effect of a one unit increase in basic sanitation on life expectancy depends on the current level of basic sanitation
  • \(\beta_1\) cannot be interpreted on its own anymore

Three cases to explore different transformations

If relationship does not look linear

If residuals are not normal

If residuals have non-constant variance

Case 2/3: Residuals are not normal or non-constant variance

• Transform dependent/response variable (Y)

gladder(gapm$life_exp)

Case 2/3: Run models with transformations: examples

gapm <- gapm %>%
  mutate(VR_2 = vax_rate^2,
         VR_3 = vax_rate^3)

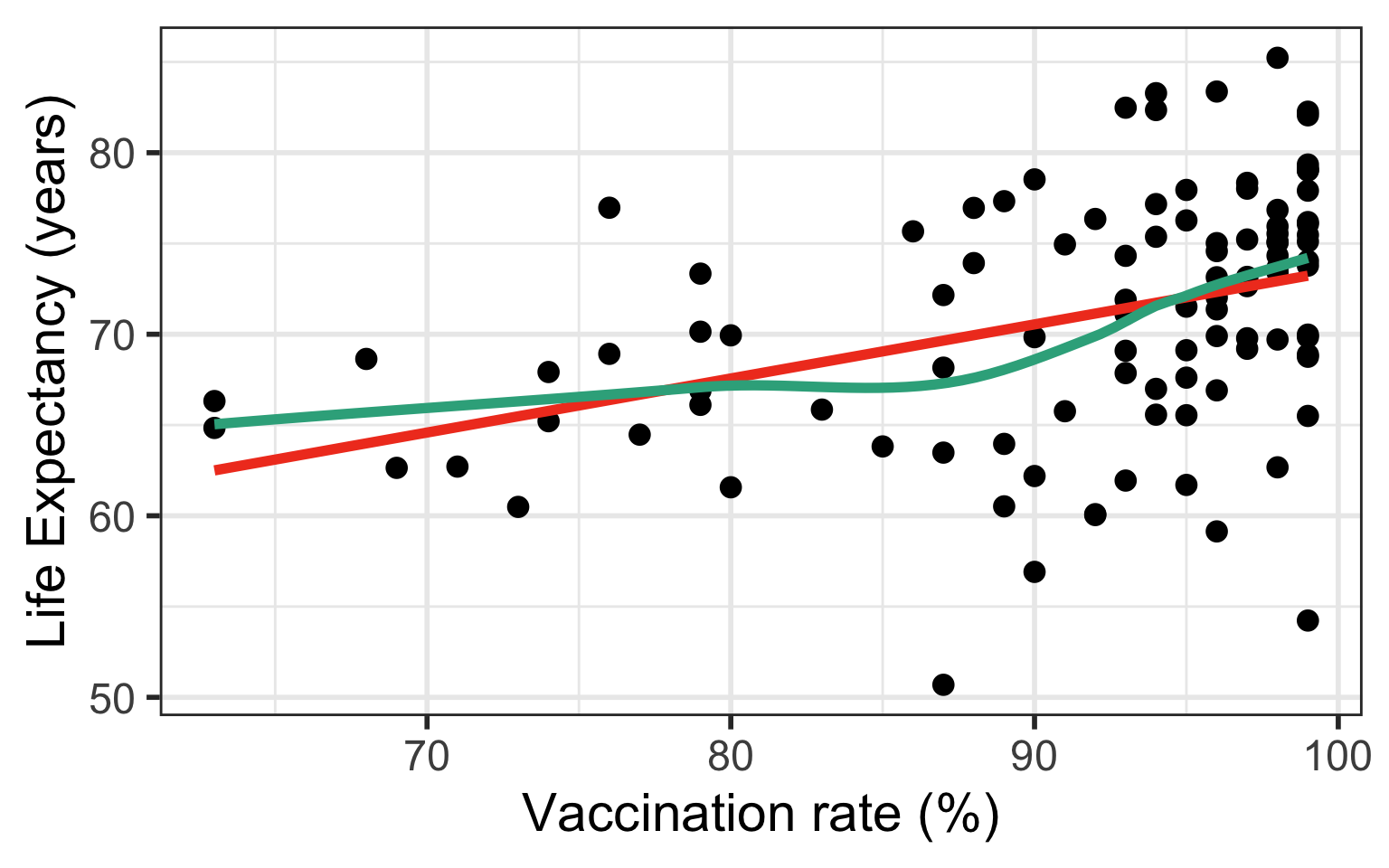

Model 1: \(LE = \beta_0 + \beta_1 VR + \epsilon\)

model1 = gapm %>% lm(formula = life_exp ~ vax_rate)

term	estimate	std.error	statistic	p.value
(Intercept)	43.733	6.432	6.799	0.000
vax_rate	0.298	0.070	4.255	0.000

Model 4: \(LE = \beta_0 + \beta_1 VR + \beta_2 VR^2 +\epsilon\)

model4 = gapm %>% lm(formula = life_exp ~ vax_rate + VR_2)

term	estimate	std.error	statistic	p.value
(Intercept)	126.503	50.898	2.485	0.015
vax_rate	−1.684	1.211	−1.390	0.167
VR_2	0.012	0.007	1.639	0.104

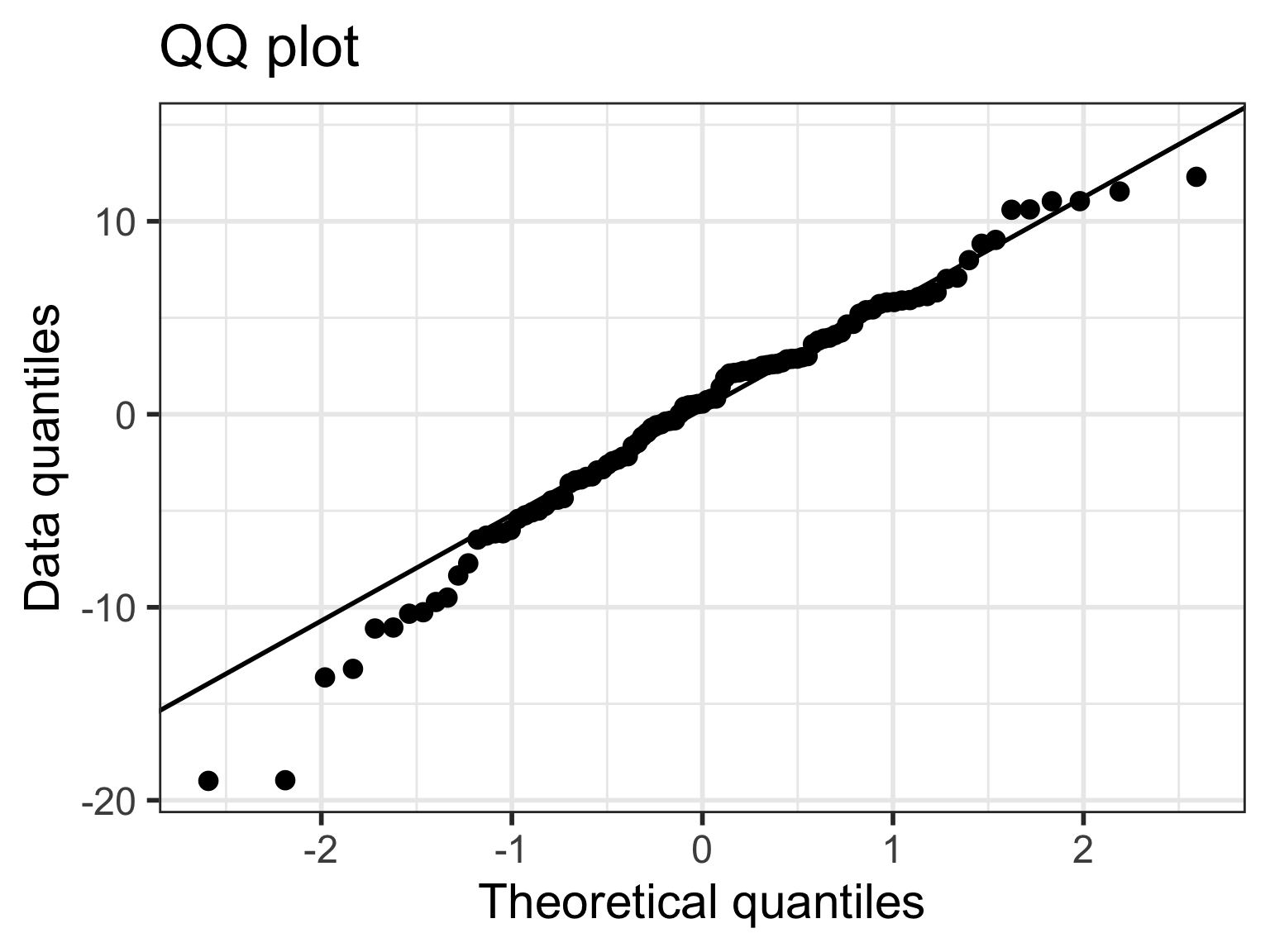

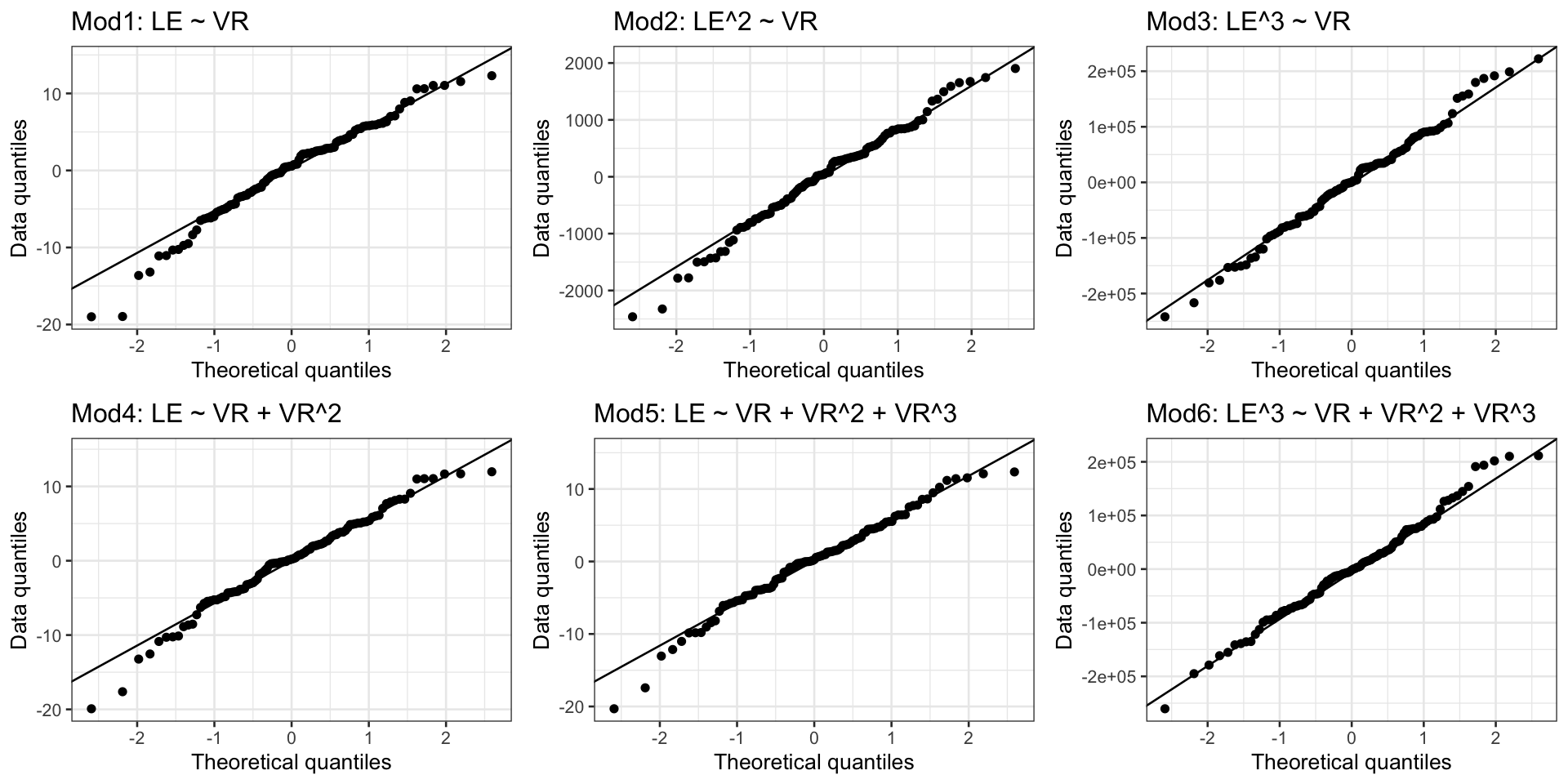

Case 2/3: Normal Q-Q plots comparison

• All QQ plots look roughly the same… some improvement on lower tail in model 2, 3, 6

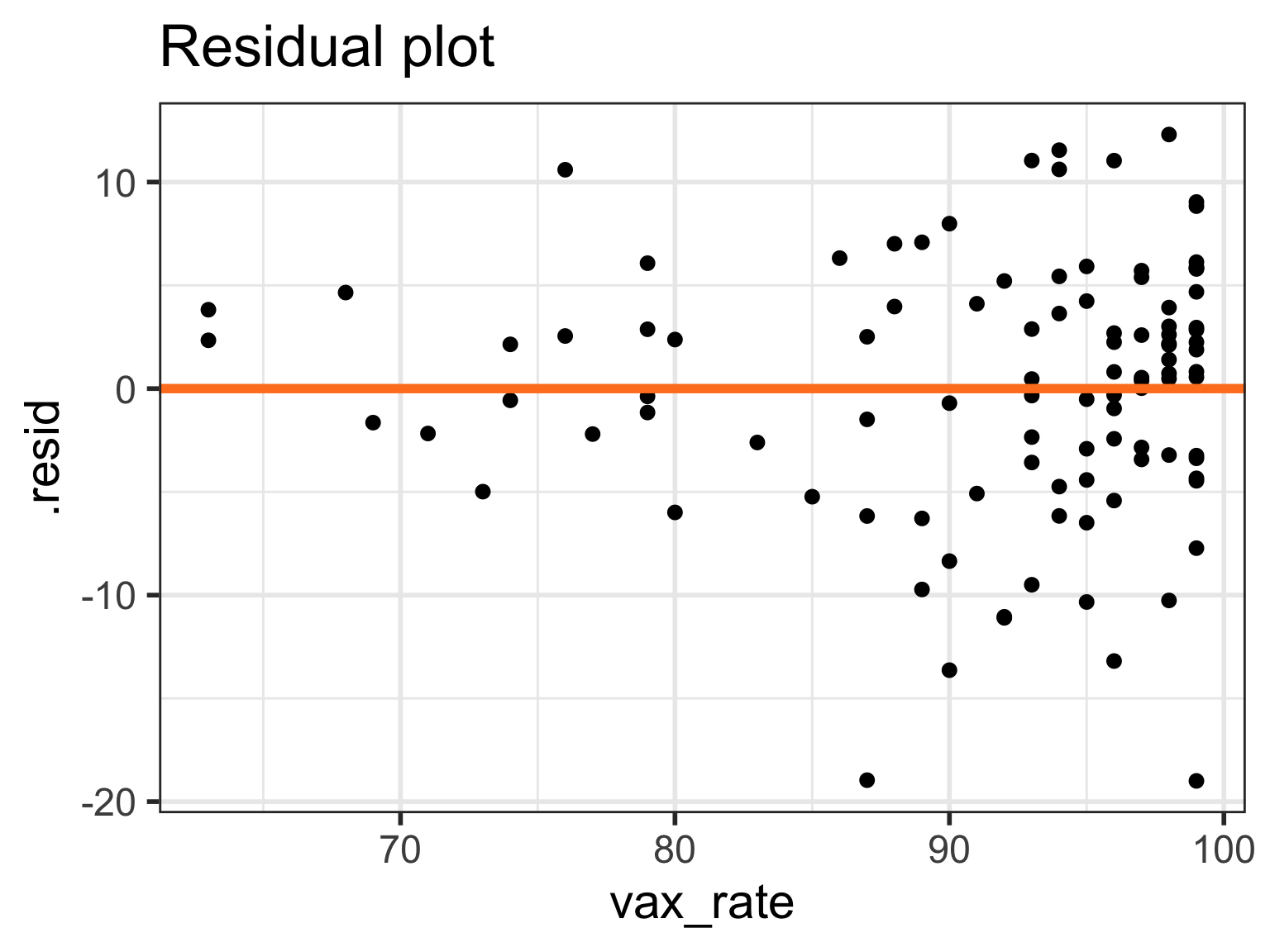

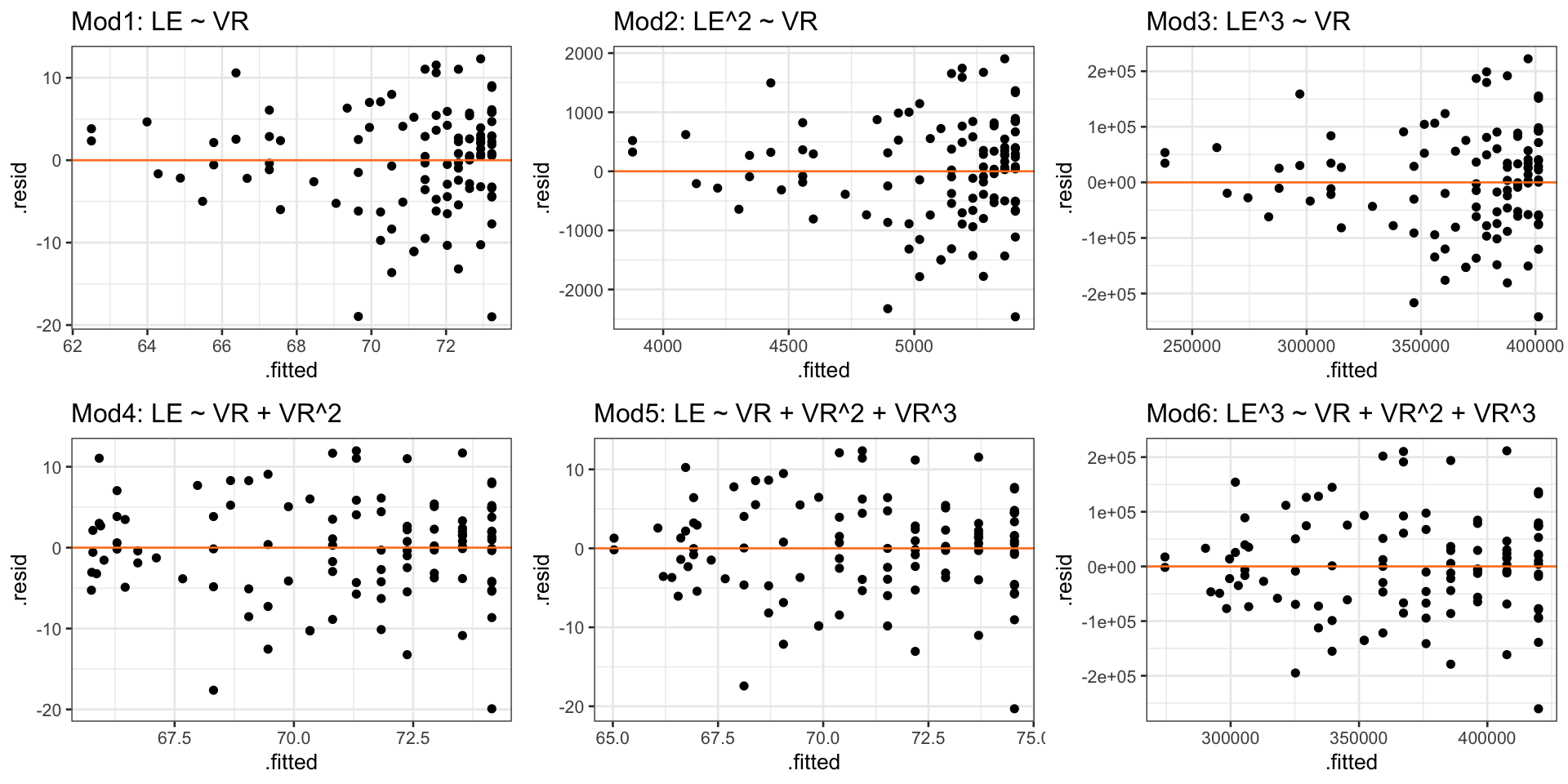

Case 2/3:Residual plots comparison

• Models 4-6 have more homoskedasticity

Tips on transformations

• Recall, assessing our LINE assumptions are not on \(Y\) alone!! (it’s \(Y|X\), aka \(\epislon\))

  • We can use gladder() to get a sense of what our transformations will do to the data, but we need to check with our scatterplots, QQ plots, and residual plots again!!

• Transformations usually work better if all original values are positive (or negative)

• If observation has a 0, then we cannot perform certain transformations

• Log function only defined for positive values

  • We might take the \(log(X+1)\) if \(X\) includes a 0 value

• When we make cubic or square transformations, we MUST include the original \(X\) in the model

  • We do not do this for \(Y\) though

Choosing to transform or not

• If the model without the transformation is blatantly violating a LINE assumption

  • Then a transformation is a good idea
  • If transformations do not help, then keep it untransformed



• If the model without a transformation is not following the LINE assumptions very well, but is mostly okay

  • Then try to avoid a transformation
  • Think about what predictors might need to be added
  • Especially if you keep seeing the same points as influential



• If interpretability is important in your final work, then transformations are not a great solution

Learning Objectives

1. Implement a model with data transformations to meet LINE assumptions.

2. Use visualizations and cut off points to flag potentially influential points using residuals, leverage, and Cook’s distance

3. Handle influential points and assumption violations by checking data errors, reassessing the model, and making data transformations.

Types of influential points

Outliers

• An observation (\(X_i, Y_i\)) whose response \(Y_i\) does not follow the general trend of the rest of the data

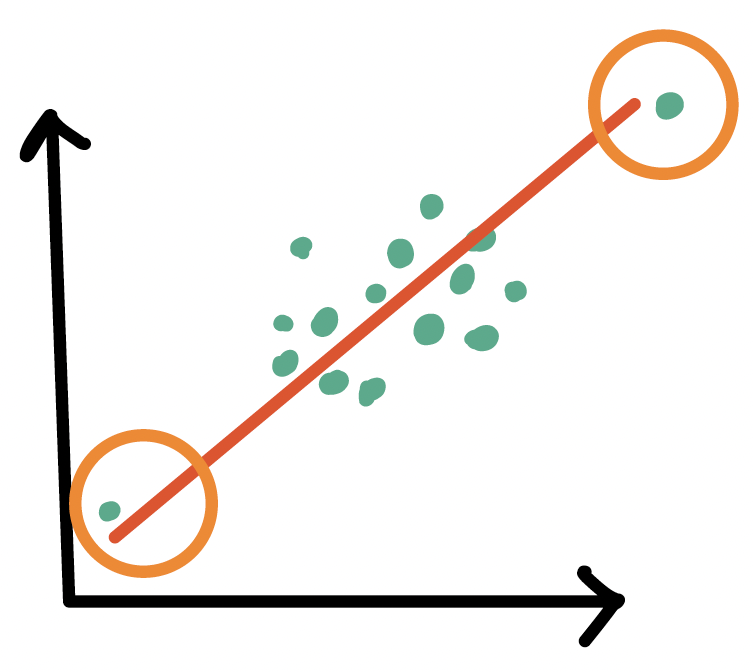

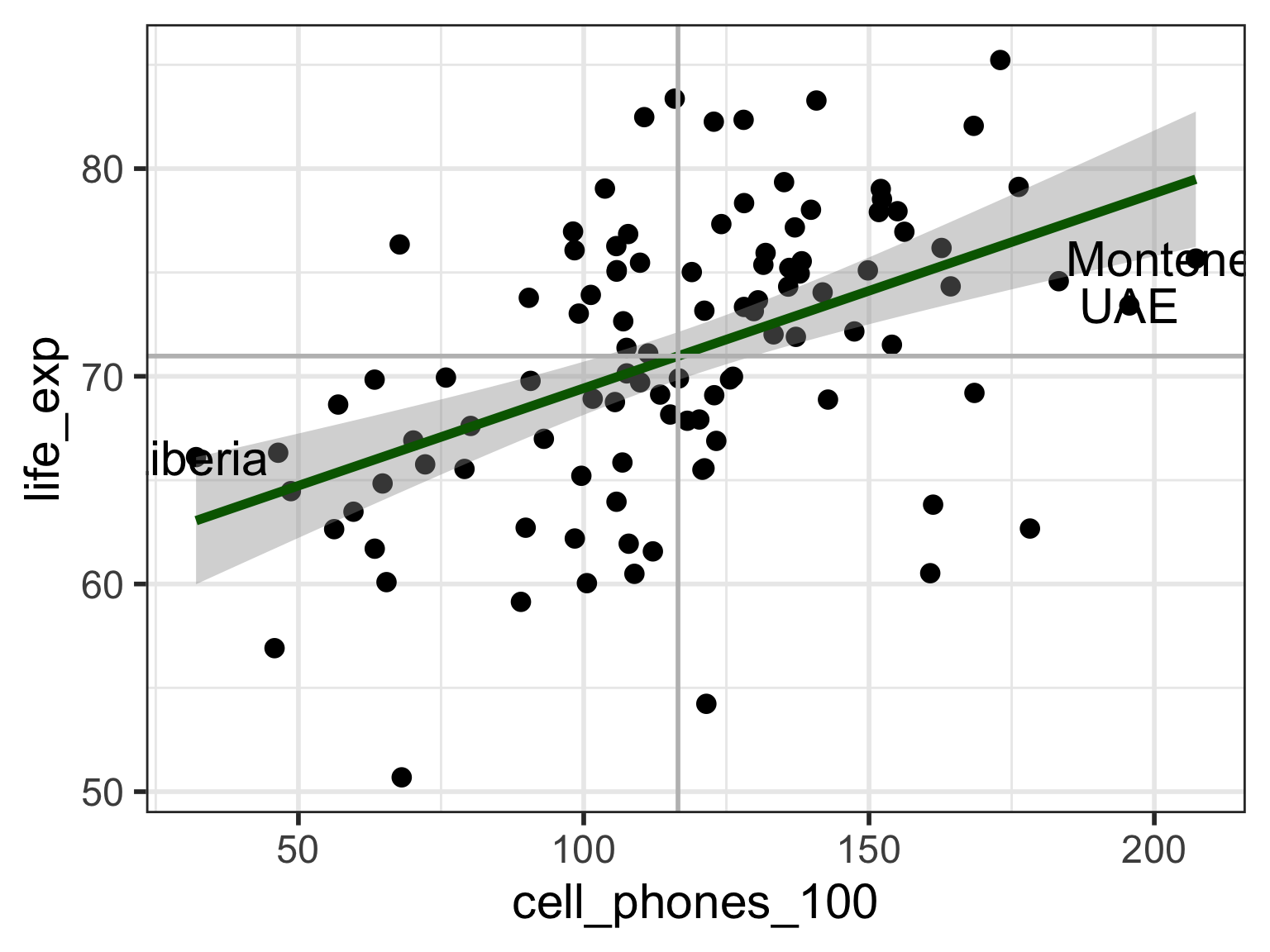

High leverage observations

• An observation (\(X_i, Y_i\)) whose predictor \(X_i\) has an extreme value
• \(X_i\) can be an extremely high or low value compared to the rest of the observations

Tools to measure influential points

• Internally standardized residual (outlier)



• Leverage (high leverage point)

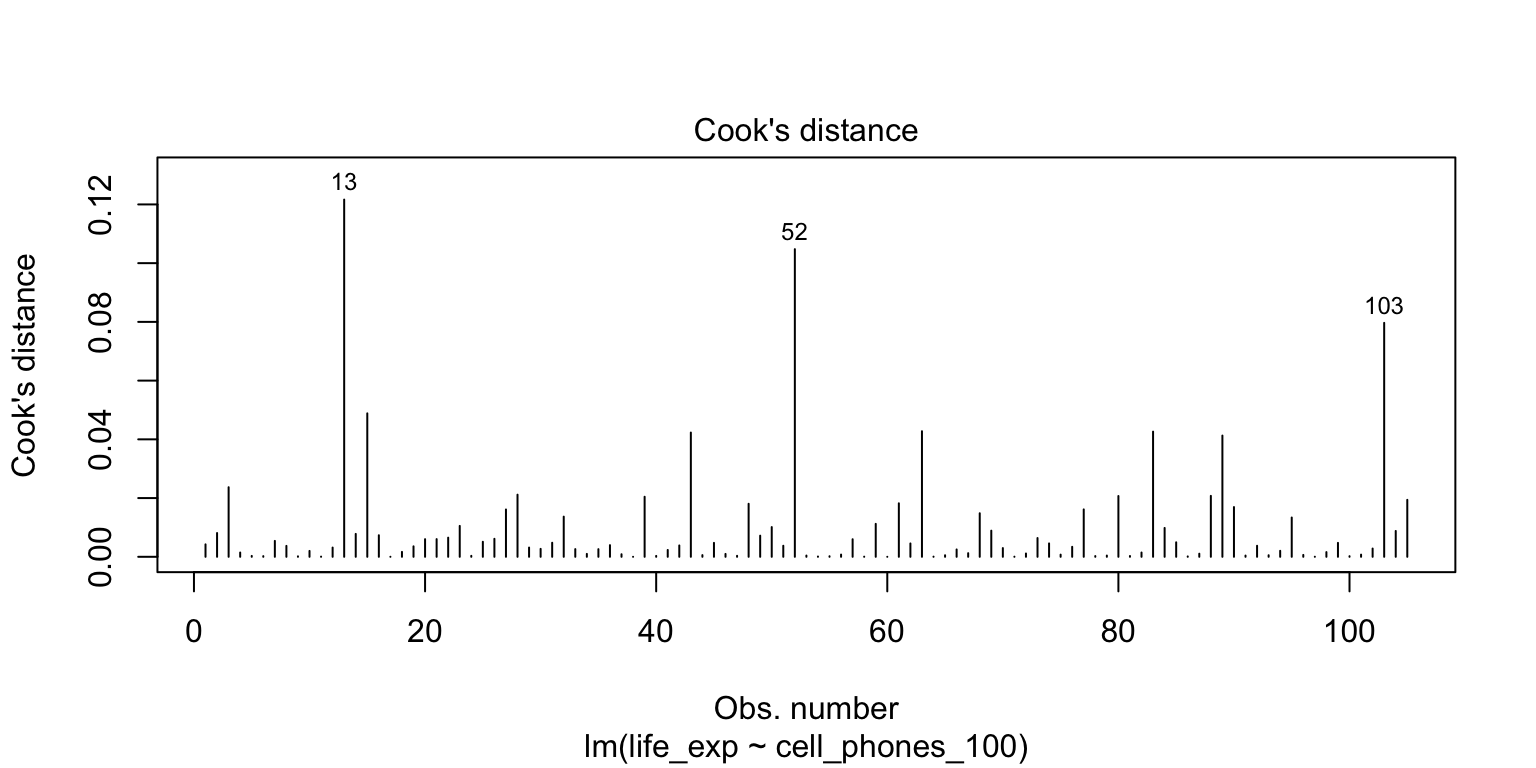

• Cook’s distance (overall influence, both)

Poll Everywhere Question 3

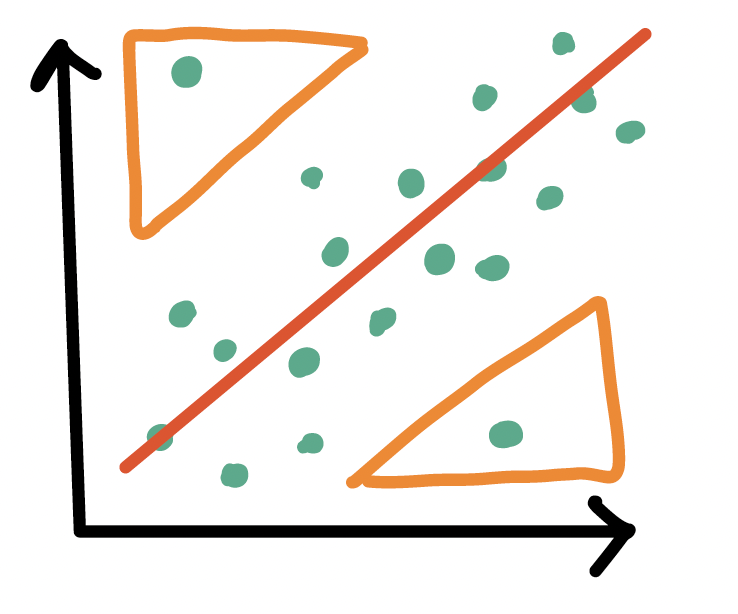

Outliers

• An observation (\(X_i, Y_i\)) whose response \(Y_i\) does not follow the general trend of the rest of the data



• How do we determine if a point is an outlier?

  • Scatterplot of \(Y\) vs. \(X\)
  • Followed by evaluation of its residual (and standardized residual)
    • Typically use the internally standardized residual (aka studentized residual)

Identifying outliers

Internally standardized residual

\[ r_i = \frac{\widehat\epsilon_i}{\sqrt{\widehat\sigma^2(1-h_{ii})}} \]

• We flag an observation if the standardized residual is “large”

  • Different sources will define “large” differently

  • PennState site uses \(|r_i| > 3\)

  • autoplot() shows the 3 observations with the highest standardized residuals

  • Other sources use \(|r_i| > 2\), which is a little more conservative

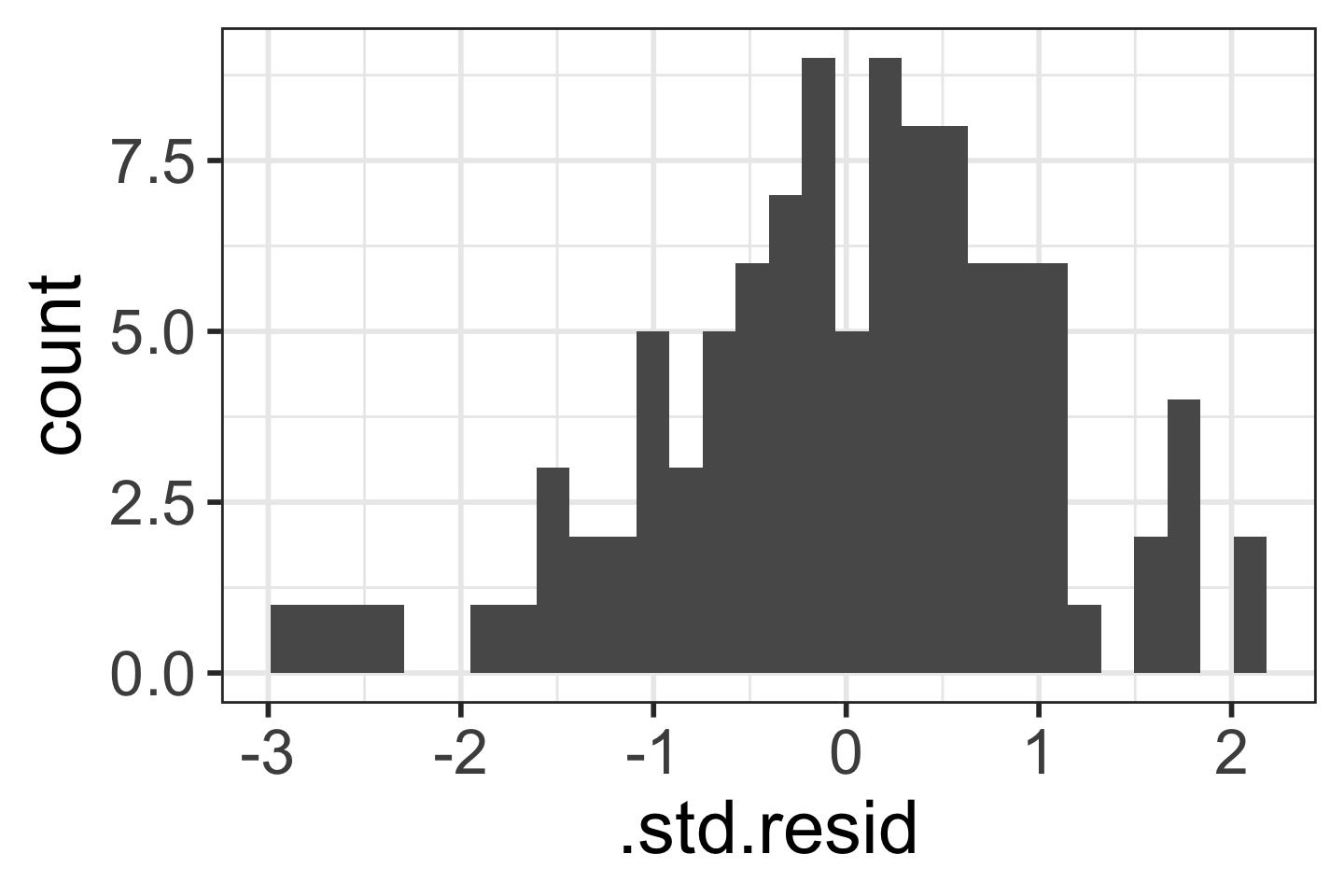

ggplot(data = aug1) +
  geom_histogram(aes(x = .std.resid))

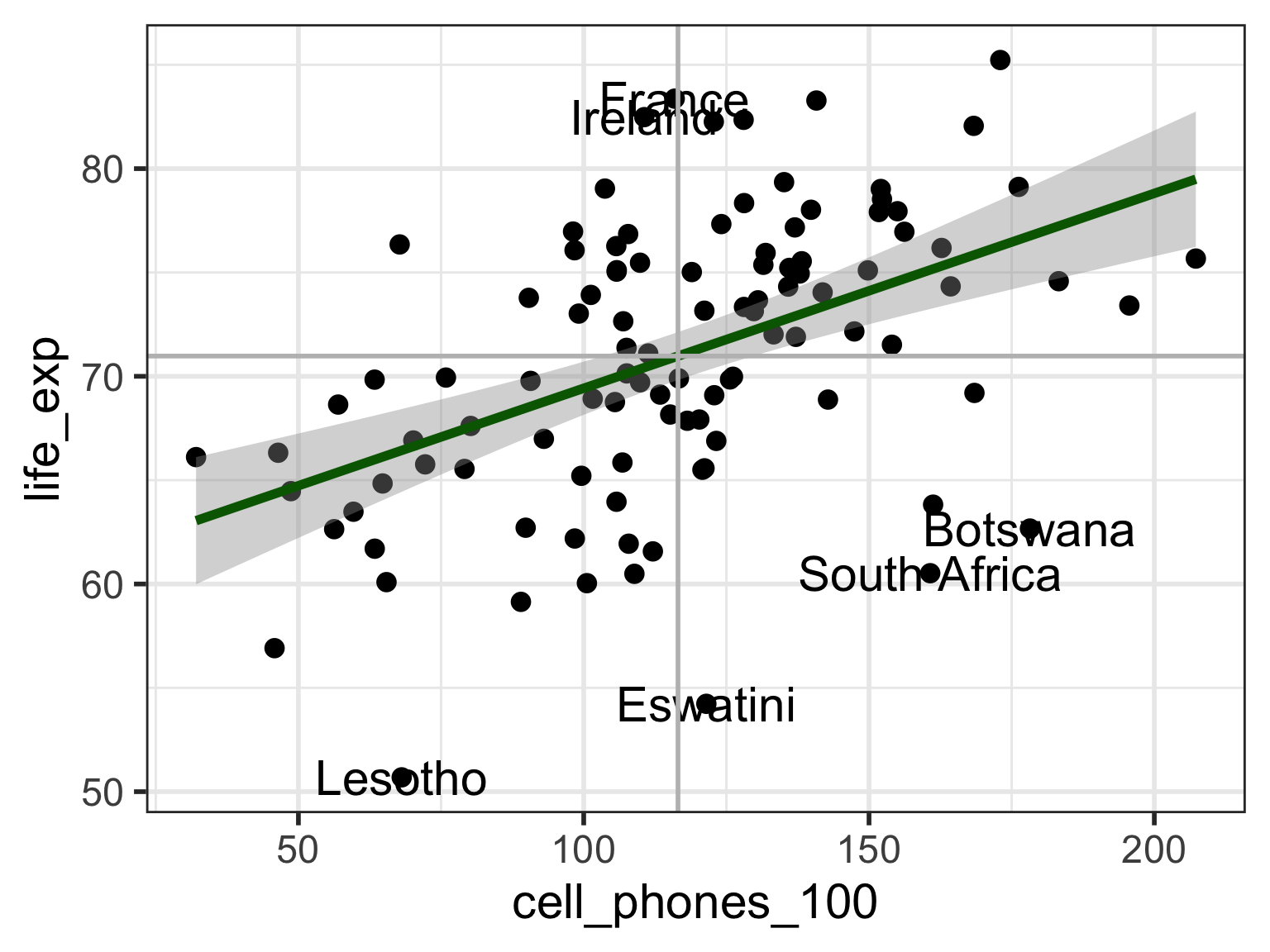

Countries that are outliers (\(|r_i| > 3\))

• We can identify the countries that are outliers
• This is the usual cut off that I use

aug1 %>%
  filter(abs(.std.resid) > 3)

# A tibble: 0 × 24
# ℹ 24 variables: territory <chr>, life_exp <dbl>, cell_phones_100 <dbl>,
#   .std.resid <dbl>, .fitted <dbl>, .resid <dbl>, .hat <dbl>, .sigma <dbl>,
#   .cooksd <dbl>, geo <chr>, freedom_status <fct>, vax_rate <dbl>,
#   co2_emissions <dbl>, basic_sani <dbl>, happiness_score <dbl>,
#   income_level_4 <chr>, basic_sani_80_above <chr>, fs_order <dbl>,
#   LE_2 <dbl>, LE_3 <dbl>, BS_2 <dbl>, BS_3 <dbl>, VR_2 <dbl>, VR_3 <dbl>

Countries that are outliers (\(|r_i| > 2\))

• For teaching purposes, I will use the cut off of 2

aug1 %>%
  filter(abs(.std.resid) > 2)

# A tibble: 6 × 24
  territory    life_exp cell_phones_100 .std.resid .fitted .resid    .hat .sigma
  <chr>           <dbl>           <dbl>      <dbl>   <dbl>  <dbl>   <dbl>  <dbl>
1 Botswana         62.7           178.       -2.41    76.8  -14.1 0.0401    5.82
2 France           83.4           116.        2.10    70.9   12.4 0.00953   5.86
3 Ireland          82.5           111.        2.03    70.4   12.1 0.00981   5.87
4 Lesotho          50.7            68.1      -2.68    66.4  -15.7 0.0284    5.78
5 Eswatini         54.2           121.       -2.90    71.4  -17.2 0.00972   5.74
6 South Africa     60.5           161.       -2.48    75.1  -14.6 0.0253    5.81
# ℹ 16 more variables: .cooksd <dbl>, geo <chr>, freedom_status <fct>,
#   vax_rate <dbl>, co2_emissions <dbl>, basic_sani <dbl>,
#   happiness_score <dbl>, income_level_4 <chr>, basic_sani_80_above <chr>,
#   fs_order <dbl>, LE_2 <dbl>, LE_3 <dbl>, BS_2 <dbl>, BS_3 <dbl>, VR_2 <dbl>,
#   VR_3 <dbl>

Visual: Countries that are outliers (\(|r_i| > 2\))

Label only countries with large internally standardized residuals:

ggplot(aug1, aes(x = cell_phones_100, y = life_exp,
                 label = territory)) +
  geom_point() +
  geom_smooth(method = "lm", color = "darkgreen") +
  geom_text(aes(label = ifelse(abs(.std.resid) > 2, as.character(territory), ''))) +
  geom_vline(xintercept = mean(aug1$cell_phones_100), color = "grey") +
  geom_hline(yintercept = mean(aug1$life_exp), color = "grey")

What does the model look like without outliers?

• When we remove outliers, how do our coefficient estimates change?
• We can compare the model with and without outliers

model1 <- gapm %>% lm(formula = life_exp ~ cell_phones_100)
tidy_model1 = tidy(model1)

Model with outliers

tidy(model1) %>% gt() %>% # With outliers
 tab_options(table.font.size = 40) %>%
  fmt_number(decimals = 3)

term	estimate	std.error	statistic	p.value
(Intercept)	60.041	2.056	29.207	0.000
cell_phones_100	0.094	0.017	5.546	0.000

\[ \widehat{Y} = 60.04 + 0.094\cdot X \]

Model without outliers

aug1_no_out <- aug1 %>% filter(abs(.std.resid) <= 2)

model1_no_out <- aug1_no_out %>%
  lm(formula = life_exp ~ cell_phones_100)
tidy(model1_no_out) %>% gt() %>% # Without outliers
 tab_options(table.font.size = 40) %>%
  fmt_number(decimals = 3)

term	estimate	std.error	statistic	p.value
(Intercept)	59.479	1.760	33.791	0.000
cell_phones_100	0.102	0.015	7.001	0.000

\[ \widehat{Y} = 59.48 + 0.102\cdot X \]

• Models have similar coefficient estimates, but standard errors are smaller for model without outliers
  • This is not a reason to exclude outliers!!

High leverage observations

• An observation (\(X_i, Y_i\)) whose response \(X_i\) is considered “extreme” compared to the other values of \(X\)



• How do we determine if a point has high leverage?

  • Scatterplot of \(Y\) vs. \(X\)
  • Calculating the leverage of each observation

Leverage \(h_i\)

Leverage

Measure of the distance between the x value (\(X_i\)) for the data point (\(i\)) and the mean of the x values (\(\overline{X}\)) for all \(n\) data points

• Values of leverage are: \(0 \leq h_i \leq 1\)
• We flag an observation if the leverage is “high”

  • Different sources will define “high” differently

  • Some textbooks use \(h_i > 4/n\) where \(n\) = sample size

  • Some people suggest \(h_i > 6/n\)

  • PennState site uses \(h_i > 3p/n\) where \(p\) = number of regression coefficients

Countries with high leverage (\(h_i > 4/n\))

• We can look at the countries that have high leverage

aug1 = aug1 %>% relocate(.hat, .after = cell_phones_100)

aug1 %>% filter(.hat > 4/80) %>% arrange(desc(.hat))

# A tibble: 3 × 24
  territory  life_exp cell_phones_100   .hat .std.resid .fitted .resid .sigma
  <chr>         <dbl>           <dbl>  <dbl>      <dbl>   <dbl>  <dbl>  <dbl>
1 Montenegro     75.7           207.  0.0758     -0.666    79.5  -3.82   5.98
2 Liberia        66.1            32.1 0.0669      0.531    63.0   3.06   5.99
3 UAE            73.4           196.  0.0599     -0.862    78.4  -4.99   5.97
# ℹ 16 more variables: .cooksd <dbl>, geo <chr>, freedom_status <fct>,
#   vax_rate <dbl>, co2_emissions <dbl>, basic_sani <dbl>,
#   happiness_score <dbl>, income_level_4 <chr>, basic_sani_80_above <chr>,
#   fs_order <dbl>, LE_2 <dbl>, LE_3 <dbl>, BS_2 <dbl>, BS_3 <dbl>, VR_2 <dbl>,
#   VR_3 <dbl>

Poll Everywhere Question 4

Visual: Countries with high leverage (\(h_i > 4/n\))

Label only countries with large leverage:

ggplot(aug1, aes(x = cell_phones_100, y = life_exp,
                 label = territory)) +
  geom_point() +
  geom_smooth(method = "lm", color = "darkgreen") +
  geom_text(aes(label = ifelse(.hat > 4/80, as.character(territory), ''))) +
  geom_vline(xintercept = mean(aug1$cell_phones_100), color = "grey") +
  geom_hline(yintercept = mean(aug1$life_exp), color = "grey")

What does the model look like without the high leverage points?

• When we remove high leverage points, how do our coefficient estimates and their standard error change?
• We can compare the model with and without high leverage observations

Model with high leverage observations

tidy(model1) %>% gt() %>% # With high leverage points
 tab_options(table.font.size = 40) %>%
  fmt_number(decimals = 3)

term	estimate	std.error	statistic	p.value
(Intercept)	60.041	2.056	29.207	0.000
cell_phones_100	0.094	0.017	5.546	0.000

\[ \widehat{Y} = 60.04 + 0.094\cdot X \]

Model without high leverage observations

aug1_lowlev <- aug1 %>% filter(.hat <= 4/80)

model1_lowlev <- aug1_lowlev %>%
  lm(formula = life_exp ~ cell_phones_100)
tidy(model1_lowlev) %>% gt() %>% # Without high-leverage points
 tab_options(table.font.size = 40) %>%
  fmt_number(decimals = 3)

term	estimate	std.error	statistic	p.value
(Intercept)	58.964	2.249	26.219	0.000
cell_phones_100	0.104	0.019	5.528	0.000

\[ \widehat{Y} = 58.96 + 0.104\cdot X \]

• High leverage points can change your coefficient estimate, but not necessarily

Cook’s distance

• Measures the overall influence of an observation

• Attempts to measure how much influence a single observation has over the fitted model

  • Measures how coefficient estimates change when the \(ith\) observation is removed from the model

  • Combines leverage and outlier information

The Cook’s distance for the \(i^{th}\) observation

\[d_i = \frac{h_i}{2(1-h_i)} \cdot r_i^2\] where \(h_i\) is the leverage and \(r_i\) is the studentized residual



• Another rule for Cook’s distance that is not strict:
  • Investigate observations that have \(d_i > 1\)
• Cook’s distance values are already in the augment tibble: .cooksd

Countries with high Cook’s distance

aug1 = aug1 %>% relocate(.cooksd, .after = cell_phones_100)
aug1 %>% arrange(desc(.cooksd))

# A tibble: 105 × 24
   territory  life_exp cell_phones_100 .cooksd    .hat .std.resid .fitted .resid
   <chr>         <dbl>           <dbl>   <dbl>   <dbl>      <dbl>   <dbl>  <dbl>
 1 Botswana       62.7           178.   0.122  0.0401      -2.41     76.8 -14.1
 2 Lesotho        50.7            68.1  0.105  0.0284      -2.68     66.4 -15.7
 3 South Afr…     60.5           161.   0.0797 0.0253      -2.48     75.1 -14.6
 4 Cote d'Iv…     63.8           161.   0.0488 0.0256      -1.93     75.2 -11.4
 5 Mozambique     56.9            45.8  0.0428 0.0498      -1.28     64.3  -7.43
 6 Singapore      85.2           173.   0.0426 0.0352       1.53     76.3   8.96
 7 Jordan         76.4            67.7  0.0423 0.0287       1.69     66.4   9.95
 8 Eswatini       54.2           121.   0.0413 0.00972     -2.90     71.4 -17.2
 9 UAE            73.4           196.   0.0237 0.0599      -0.862    78.4  -4.99
10 France         83.4           116.   0.0212 0.00953      2.10     70.9  12.4
# ℹ 95 more rows
# ℹ 16 more variables: .sigma <dbl>, geo <chr>, freedom_status <fct>,
#   vax_rate <dbl>, co2_emissions <dbl>, basic_sani <dbl>,
#   happiness_score <dbl>, income_level_4 <chr>, basic_sani_80_above <chr>,
#   fs_order <dbl>, LE_2 <dbl>, LE_3 <dbl>, BS_2 <dbl>, BS_3 <dbl>, VR_2 <dbl>,
#   VR_3 <dbl>

Plotting Cook’s Distance

• plot(model) shows figures similar to autoplot()
  • 4th plot is Cook’s distance (not available in autoplot())

plot(model1, which = 4)

What does the model look like without the high Cook’s distance points?

• When we remove high Cook’s distance, how do our coefficient estimates and their standard error change?
• We can compare the model with and without high Cook’s distance points

Model with high Cook’s distance observations

tidy(model1) %>% gt() %>% # With high Cook's distance points
 tab_options(table.font.size = 40) %>%
  fmt_number(decimals = 3)

term	estimate	std.error	statistic	p.value
(Intercept)	60.041	2.056	29.207	0.000
cell_phones_100	0.094	0.017	5.546	0.000

\[ \widehat{Y} = 60.04 + 0.094\cdot X \]

Model without high Cook’s distance observations

aug1_lowcd <- aug1 %>% filter(.cooksd <= 0.1)
model1_lowcd <- aug1_lowcd %>% lm(formula = life_exp ~ cell_phones_100)
tidy(model1_lowcd) %>% gt() %>% # Without high Cook's distance points
 tab_options(table.font.size = 40) %>%
  fmt_number(decimals = 3)

term	estimate	std.error	statistic	p.value
(Intercept)	60.221	1.988	30.290	0.000
cell_phones_100	0.095	0.016	5.779	0.000

\[ \widehat{Y} = 60.22 + 0.095\cdot X \]

• High Cook’s distance points can change your coefficient estimate or standard errors

Summary of how we identify influential points

1. Use scatterplot of \(Y\) vs. \(X\) to see if any points fall outside of range we expect



2. Use standardized residuals, leverage, and Cook’s distance to further identify those points



3. Look at the models run with and without the identified points to check for drastic changes

   • Look at QQ plot and residuals to see if assumptions hold without those points

   • Look at coefficient estimates to see if they change in sign and large magnitude



• Next: how to handle? It’s a little wishy washy

Learning Objectives

1. Implement a model with data transformations to meet LINE assumptions.

2. Use visualizations and cut off points to flag potentially influential points using residuals, leverage, and Cook’s distance

3. Handle influential points and assumption violations by checking data errors, reassessing the model, and making data transformations.

How do we deal with influential points?

• If an observation is influential, we perform a sensitivity analysis:

  • We took out the influential points we identified then reran the model
  • Often, you’ll see that the “influential points” have not drastically changed your estimates
    • A change in sign (for example: positive slope to negative slope)
    • A really large increase (think more than 2x the original value)

• If an observation is influential, we check data errors:

  • Was there a data entry or collection problem?

  • If you have reason to believe that the observation does not hold within the population (or gives you cause to redefine your population)

• If an observation is influential, we check our model:

  • Did you leave out any important predictors?

  • Should you consider adding some interaction terms?

  • Is there any nonlinearity that needs to be modeled?

Important note on influential observations

• It’s always weird to be using numbers to help you diagnose an issue, but the issue kinda gets unresolved



• Basically, deleting an observation should be justified outside of the numbers!

  • If it’s an honest data point, then it’s giving us important information!



• A really well thought out explanation from StackExchange

Checking our model

• An observation may be influential if the model is not correctly specified

  • We may also see issues with the LINE assumptions

• What are our options to specify the model “correctly?”

  • See if we need to add predictors to our model

    • Nicky’s thought for our life expectancy example

  • Try a transformation if there is an issue with linearity or normality

  • Try a transformation if there is unequal variance

  • Try a weighted least squares approach if unequal variance (might be lesson at end of course)

  • Try a robust estimation procedure if we have a lot of outlier issues (outside scope of class)
