Data transformation: Lengthening data

Author

Nicky Wakim

Warning: Missing `trust` will be set to FALSE by default for RDS in 2.0.0.
Warning: Missing `trust` will be set to FALSE by default for RDS in 2.0.0.
Warning: Missing `trust` will be set to FALSE by default for RDS in 2.0.0.

Tidy data¹

Each variable must have its own column
Each observation must have its own row
Each value must have its own cell

Let’s look at an example² of data represented in different ways

We will look at a dataset measuring tuberculosis (TB) cases for different countries. We have information on the country, year, population, and number of TB cases:

Each column is one piece of information:

# A tibble: 6 × 4
  country      year  cases population
  <chr>       <dbl>  <dbl>      <dbl>
1 Afghanistan  1999    745   19987071
2 Afghanistan  2000   2666   20595360
3 Brazil       1999  37737  172006362
4 Brazil       2000  80488  174504898
5 China        1999 212258 1272915272
6 China        2000 213766 1280428583

Population and cases are “types” of counts:

# A tibble: 12 × 4
   country      year type            count
   <chr>       <dbl> <chr>           <dbl>
 1 Afghanistan  1999 cases             745
 2 Afghanistan  1999 population   19987071
 3 Afghanistan  2000 cases            2666
 4 Afghanistan  2000 population   20595360
 5 Brazil       1999 cases           37737
 6 Brazil       1999 population  172006362
 7 Brazil       2000 cases           80488
 8 Brazil       2000 population  174504898
 9 China        1999 cases          212258
10 China        1999 population 1272915272
11 China        2000 cases          213766
12 China        2000 population 1280428583

We look at the rate of TB cases:

# A tibble: 6 × 3
  country      year rate
  <chr>       <dbl> <chr>
1 Afghanistan  1999 745/19987071
2 Afghanistan  2000 2666/20595360
3 Brazil       1999 37737/172006362
4 Brazil       2000 80488/174504898
5 China        1999 212258/1272915272
6 China        2000 213766/1280428583

What do we do when our data are not tidy?

In HRS data, let’s say we have data on 3 years’ worth of self-reported health (srh)

tibble(hrs_wide_3yrs)

# A tibble: 300 × 4
   id         `2018`    `2020`    `2022`
   <chr>      <chr>     <chr>     <chr>
 1 557020_020 Very Good Very Good Excellent
 2 551223_010 Excellent Very Good Excellent
 3 556846_010 Very Good Very Good Very Good
 4 556920_010 Excellent Excellent Very Good
 5 551372_010 Fair      Fair      Fair
 6 551723_010 Good      Fair      Good
 7 558546_010 Very Good Good      Good
 8 557680_010 Excellent Excellent Excellent
 9 552741_010 Fair      Fair      Fair
10 559586_010 Good      Fair      Good
# ℹ 290 more rows

Current issue: information on the year is stored within column names

The `pivot_longer()` function

pivot_longer(): function used to lengthen data, which means it takes multiple columns and collapses them into new columns (based on names and values)

df_long <- pivot_longer(
  data = df_wide,
  cols = columns_to_pivot,
  names_to = "name",
  values_to = "val"
)

data will usually be fed using the pipe operator (|>)
cols specifies the columns to pivot into longer format
- You can specify a range of columns using : or use starts_with(), ends_with(), or contains() to select columns
names_to specifies the name of the new column that will contain the original column names
values_to specifies the name of the new column that will contain the values from the original columns

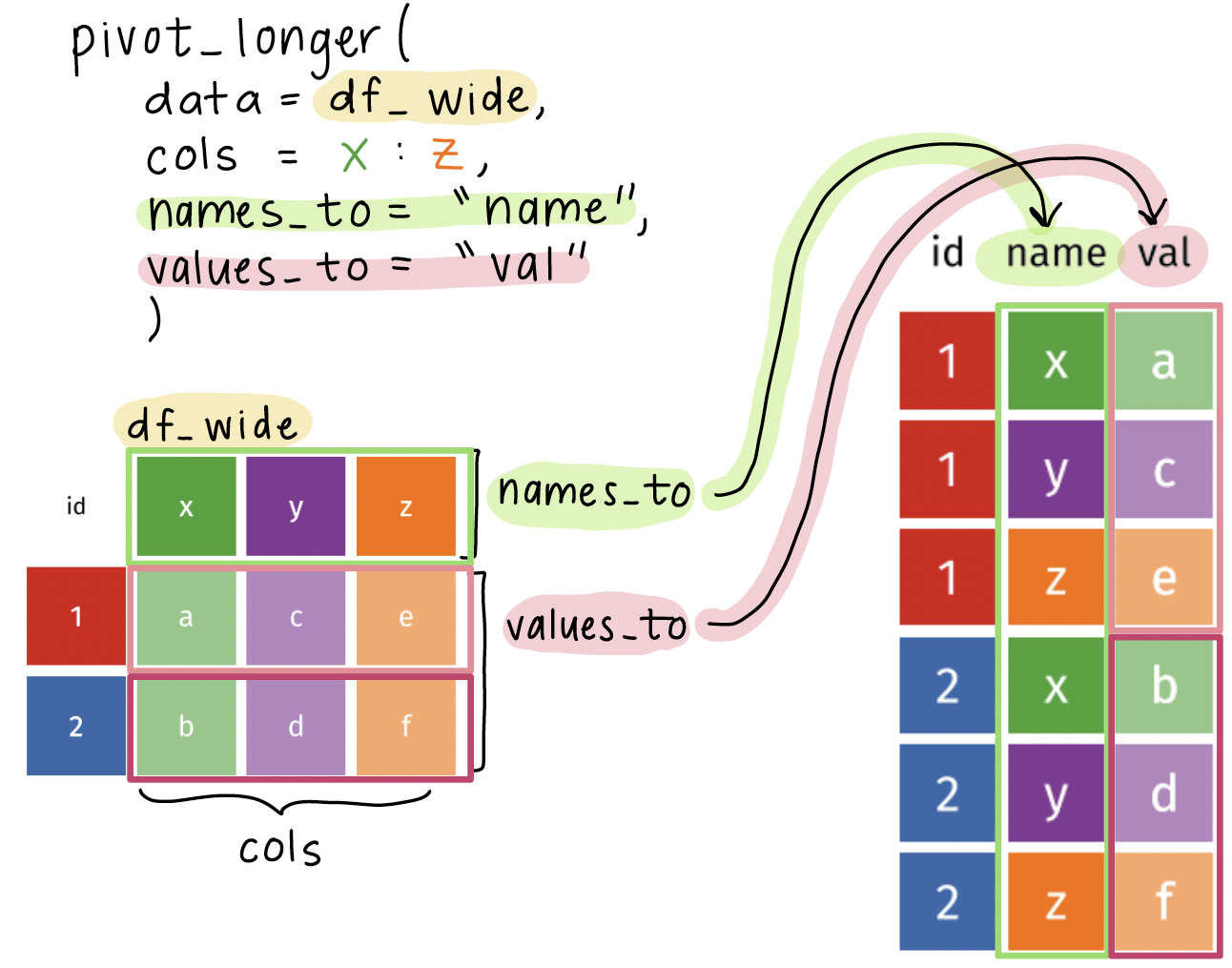

Visual of what `pivot_longer()` does

Using the pivot_longer() function on the HRS dataset

We want to
- Keep the id column as is
- Pivot the 2018 to 2022 columns into longer format
- Create a new column called year that contains the original column names
- Create a new column called srh that contains the values from the original columns

1hrs_01_long <- hrs_wide_3yrs |>
2  pivot_longer(
3    cols = `2018`:`2022`,
4    names_to = "year",
5    values_to = "srh"
  )

1: Feed hrs_wide_3yrs into the pivot_longer() function
2: Use pivot_longer() to specify the columns to pivot into longer format
3: Specify the columns to pivot using cols = and the range of columns to pivot
4: Use names_to = to move column names (2018, 2020, and 2022) to become values in a new column called year
5: Use values_to = to move the values from the original columns (srh values under 2018, 2020, and 2022) to become values in a new column called srh

Let’s compare the before and after!

Original, wide dataset:

tibble(hrs_wide_3yrs)

# A tibble: 300 × 4
   id         `2018`    `2020`    `2022`
   <chr>      <chr>     <chr>     <chr>
 1 557020_020 Very Good Very Good Excellent
 2 551223_010 Excellent Very Good Excellent
 3 556846_010 Very Good Very Good Very Good
 4 556920_010 Excellent Excellent Very Good
 5 551372_010 Fair      Fair      Fair
 6 551723_010 Good      Fair      Good
 7 558546_010 Very Good Good      Good
 8 557680_010 Excellent Excellent Excellent
 9 552741_010 Fair      Fair      Fair
10 559586_010 Good      Fair      Good
# ℹ 290 more rows

New, tidy, longer dataset:

tibble(hrs_01_long)

# A tibble: 900 × 3
   id         year  srh
   <chr>      <chr> <chr>
 1 557020_020 2018  Very Good
 2 557020_020 2020  Very Good
 3 557020_020 2022  Excellent
 4 551223_010 2018  Excellent
 5 551223_010 2020  Very Good
 6 551223_010 2022  Excellent
 7 556846_010 2018  Very Good
 8 556846_010 2020  Very Good
 9 556846_010 2022  Very Good
10 556920_010 2018  Excellent
# ℹ 890 more rows

Notes: number of rows is 3 times longer, each individual has 3 rows of observations, each year has its own row

Wrap-up

We don’t always get data in the format we want

The pivot_longer() function is a great tool to help us transform our data into a tidy format

This will help us a lot in grouping summaries and visualizations
- For example: if we want a summary by year, we can now group by the year column

Resources

More information of the pivot_longer() function can be found here

Footnotes

Source: R for Data Science. Grolemund and Wickham.↩︎
Source: R for Data Science. Grolemund and Wickham. Example pulled from Section 5.2 ↩︎
