Data transformation: Widening data

Author

Nicky Wakim

Warning: Missing `trust` will be set to FALSE by default for RDS in 2.0.0.
Warning: Missing `trust` will be set to FALSE by default for RDS in 2.0.0.

Tidy data¹

Each variable must have its own column
Each observation must have its own row
Each value must have its own cell

Let’s look at an example² of data represented in different ways

We will look at a dataset measuring tuberculosis (TB) cases for different countries. We have information on the country, year, population, and number of TB cases:

Each column is one piece of information:

# A tibble: 6 × 4
  country      year  cases population
  <chr>       <dbl>  <dbl>      <dbl>
1 Afghanistan  1999    745   19987071
2 Afghanistan  2000   2666   20595360
3 Brazil       1999  37737  172006362
4 Brazil       2000  80488  174504898
5 China        1999 212258 1272915272
6 China        2000 213766 1280428583

Population and cases are “types” of counts:

# A tibble: 12 × 4
   country      year type            count
   <chr>       <dbl> <chr>           <dbl>
 1 Afghanistan  1999 cases             745
 2 Afghanistan  1999 population   19987071
 3 Afghanistan  2000 cases            2666
 4 Afghanistan  2000 population   20595360
 5 Brazil       1999 cases           37737
 6 Brazil       1999 population  172006362
 7 Brazil       2000 cases           80488
 8 Brazil       2000 population  174504898
 9 China        1999 cases          212258
10 China        1999 population 1272915272
11 China        2000 cases          213766
12 China        2000 population 1280428583

We look at the rate of TB cases:

# A tibble: 6 × 3
  country      year rate
  <chr>       <dbl> <chr>
1 Afghanistan  1999 745/19987071
2 Afghanistan  2000 2666/20595360
3 Brazil       1999 37737/172006362
4 Brazil       2000 80488/174504898
5 China        1999 212258/1272915272
6 China        2000 213766/1280428583

What do we do when our data are not tidy?

In HRS data, let’s say we have data on many conditions

tibble(hrs_long_cond)

# A tibble: 15,453 × 5
   id         sex    age_yr condition       has_condition
   <chr>      <chr>   <dbl> <chr>           <chr>
 1 550015_010 Male       56 sleep_problems  No
 2 550015_010 Male       56 diabetes        No
 3 550015_010 Male       56 heart_disease   No
 4 550015_010 Male       56 lung_disease    No
 5 550015_010 Male       56 arthritis       No
 6 550015_010 Male       56 cancer          No
 7 550015_010 Male       56 stroke          No
 8 550015_010 Male       56 high_bp         No
 9 550015_010 Male       56 psych_condition No
10 550015_020 Female     49 arthritis       No
# ℹ 15,443 more rows

Current issue: Column has_condition has information on many conditions. Yes can mean a person has diabetes or lung disease.

The `pivot_wider()` function

The pivot_wider() function is used to widen data, which means it takes a couple columns and spreads the data across many columns.

df_wide <- pivot_wider(
  data = df_long,
  names_from = column_with_new_headers,
  values_from = column_with_cell_values
)

data will usually be fed using the pipe operator (|>)
names_from specifies the column that will be used to create new column names
values_from specifies the column that will be used to fill in the new columns with values

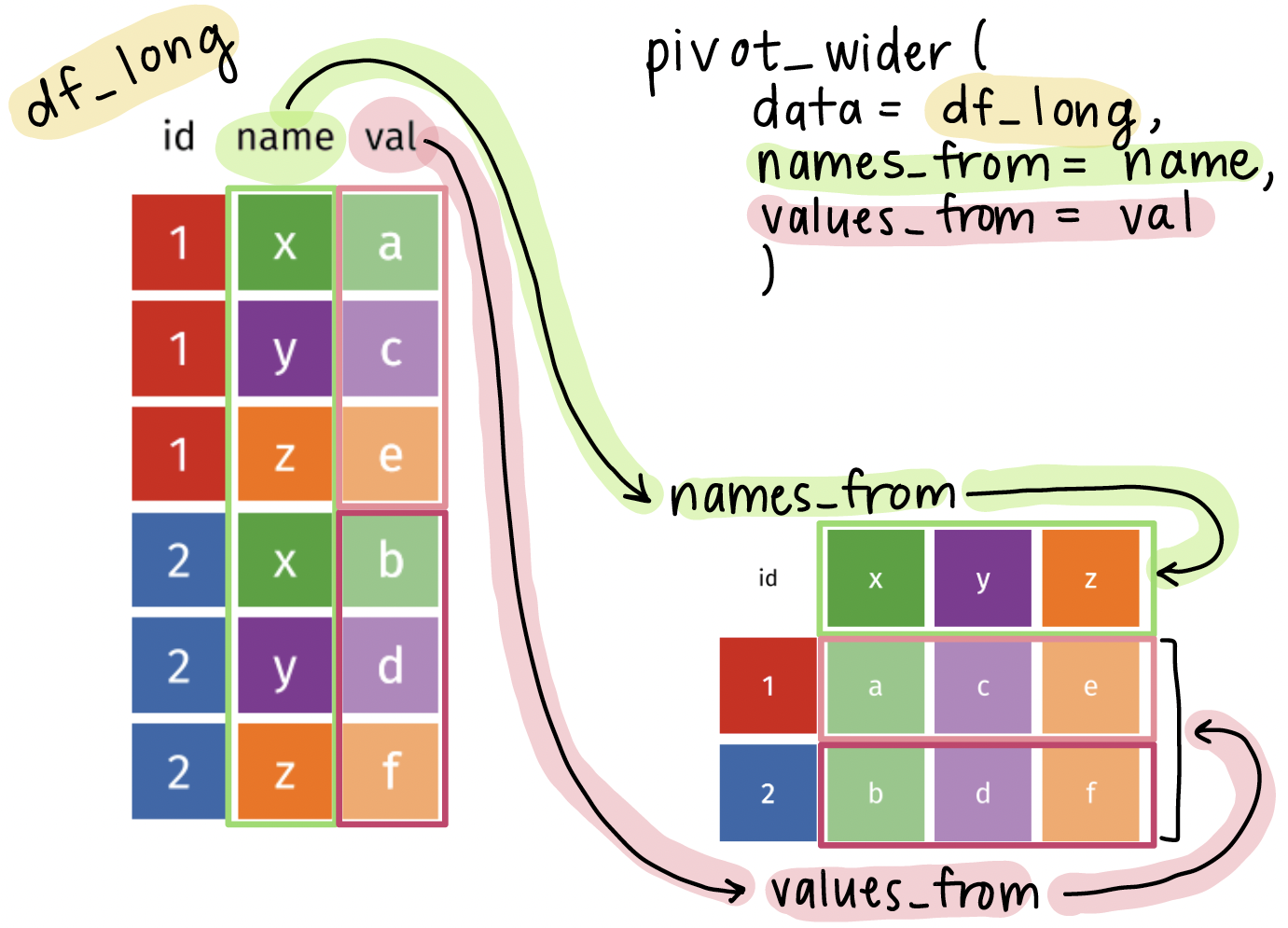

Visual of what `pivot_wider()` does

Using the pivot_longer() function on the HRS dataset

We want to
- Keep the id column as is
- Pivot the condition column into new columns, one for each condition
- Put all the values from has_condition into the new columns

1hrs_01_wide <- hrs_long_cond |>
2  pivot_wider(
3    names_from = condition,
4    values_from = has_condition
  )

1: Feed hrs_long_cond into the pivot_wider() function
2: Use pivot_wider() to specify the columns to pivot into wider format
3: Use names_from to specify the old column (condition) that the new column names will be pulled from (e.g., diabetes, lung_disease, heart_disease)
4: Use values_from to specify the old column (has_condition) that the new column values will be pulled from (e.g., Yes, No)

Note: In pivot_longer() we need quotes around the new column names, but in pivot_wider() we do NOT need quotes around the column names because they already exist in the dataset.

Let’s compare the before and after!

Original, long dataset:

tibble(hrs_long_cond)

# A tibble: 15,453 × 5
   id         sex    age_yr condition       has_condition
   <chr>      <chr>   <dbl> <chr>           <chr>
 1 550015_010 Male       56 sleep_problems  No
 2 550015_010 Male       56 diabetes        No
 3 550015_010 Male       56 heart_disease   No
 4 550015_010 Male       56 lung_disease    No
 5 550015_010 Male       56 arthritis       No
 6 550015_010 Male       56 cancer          No
 7 550015_010 Male       56 stroke          No
 8 550015_010 Male       56 high_bp         No
 9 550015_010 Male       56 psych_condition No
10 550015_020 Female     49 arthritis       No
# ℹ 15,443 more rows

New, tidy, wider dataset:

tibble(hrs_01_wide)

# A tibble: 1,717 × 12
   id         sex    age_yr sleep_problems diabetes heart_disease lung_disease
   <chr>      <chr>   <dbl> <chr>          <chr>    <chr>         <chr>
 1 550015_010 Male       56 No             No       No            No
 2 550015_020 Female     49 No             No       No            No
 3 550038_010 Male       53 No             Yes      No            No
 4 550041_010 Female     51 No             Yes      Yes           No
 5 550041_020 Male       51 No             Yes      Yes           No
 6 550043_010 Female     75 No             No       No            No
 7 550047_010 Male       54 No             No       No            No
 8 550063_010 Male       52 Yes            No       No            No
 9 550064_010 Male       56 No             Yes      No            No
10 550066_010 Female     80 No             Yes      No            No
# ℹ 1,707 more rows
# ℹ 5 more variables: arthritis <chr>, cancer <chr>, stroke <chr>,
#   high_bp <chr>, psych_condition <chr>

Notes: number of rows is 9 times shorter, each individual has 1 row of observations instead of 9 rows, each condition has its own column

Wrap-up

We don’t always get data in the format we want
- Sometimes, it’s too long!

The pivot_wider() function is a great tool to help us transform our data into a tidy format

This will help us a lot in grouping summaries and visualizations

Resources

More information of the pivot_wider() function can be found here

Footnotes

Source: R for Data Science. Grolemund and Wickham.↩︎
Source: R for Data Science. Grolemund and Wickham. Example pulled from Section 5.2 ↩︎
